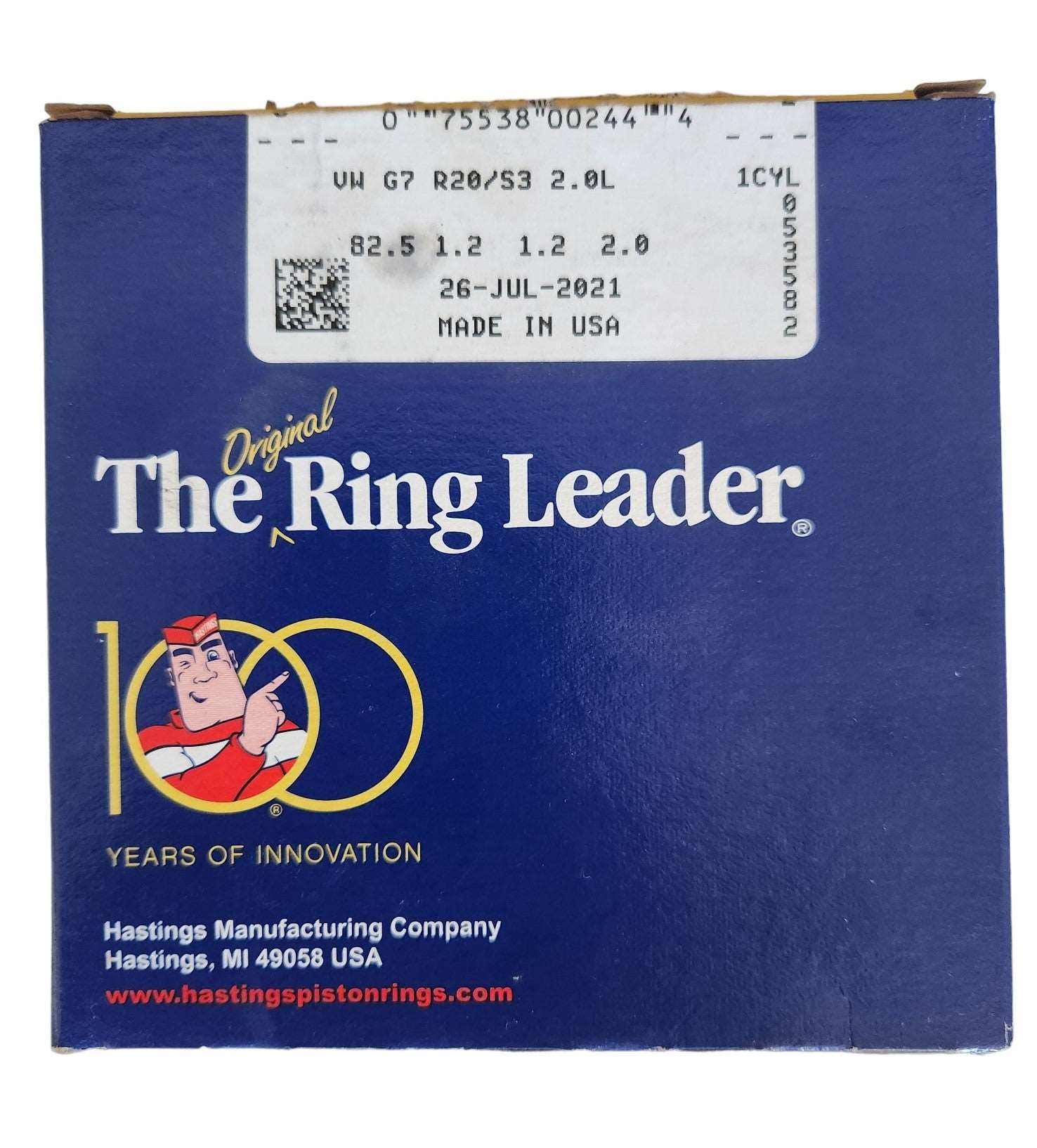

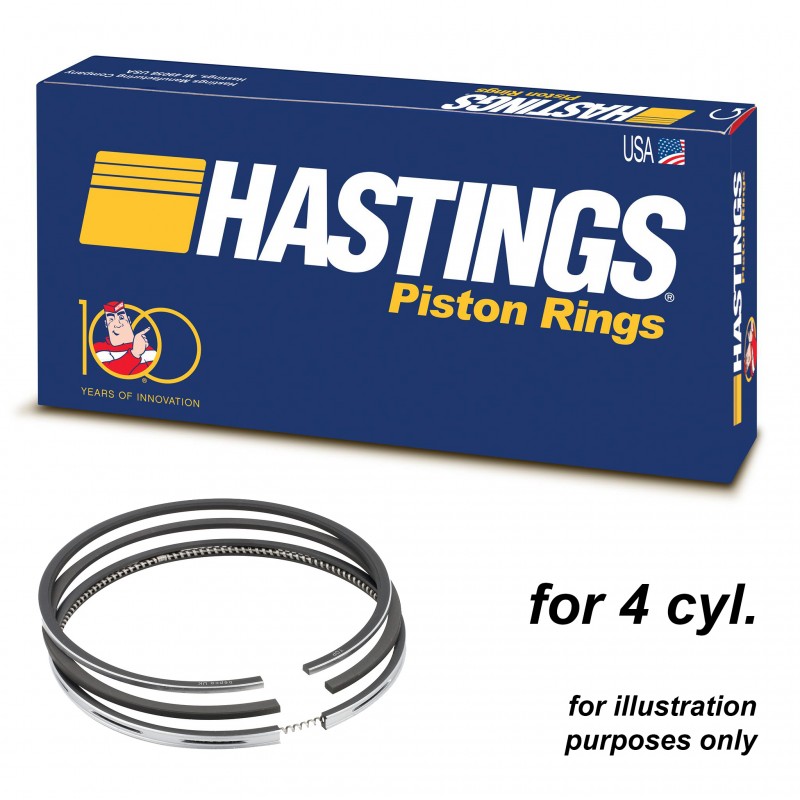

Hastings Piston Rings (2C5385S) - Single Piston Set for VW, Audi (82.5mm Bore)

Hastings Piston Rings (2C5385S) - Single Piston Set

These Hastings Piston Rings (2C5385S) are designed for use with Volkswagen and Audi vehicles, offering precision-engineered rings for optimal engine performance.

Key Features:

• Part Number: 2C5385S
• Standard Size: STD (Standard)
• Number of Cylinders: 1 (Single Piston Set)
• Cylinder Bore: 82.50 mm
• Top Ring Thickness: 1.20 mm
• 2nd Ring Thickness: 1.20 mm
• 3rd Ring Thickness: 2.00 mm

Ring Specifications:

• Top Ring:

  • Profile: Barrel Face
  • Material: Steel
  • Coating: Chrome

• 2nd Ring:

  • Profile: Reverse Torsional
  • Material: Grey Iron
  • Coating: Phosphate

• 3rd Ring:

  • Profile: 3 PC. Flex-Vent
  • Material: Steel Rail / Stainless Ex
  • Coating: Chrome Rail

Compatibility:

These piston rings are designed for a variety of VW and Audi engines with an 82.5mm cylinder bore. Please check compatibility with your vehicle's engine specification for proper fitment.

Installation Notes:

• Ensure correct orientation and positioning of each piston ring during installation.
• Verify that the cylinder bore is within specification for optimal performance and seal.
• Use a proper piston ring compressor tool for safe and effective installation.
