Used 180amp Alternator 03L903023Q for VW Transporter, Passat, Crafter, Multivan – OEM Replacement

USED PART

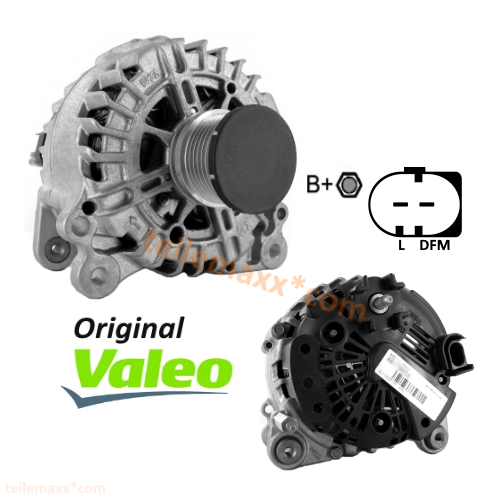

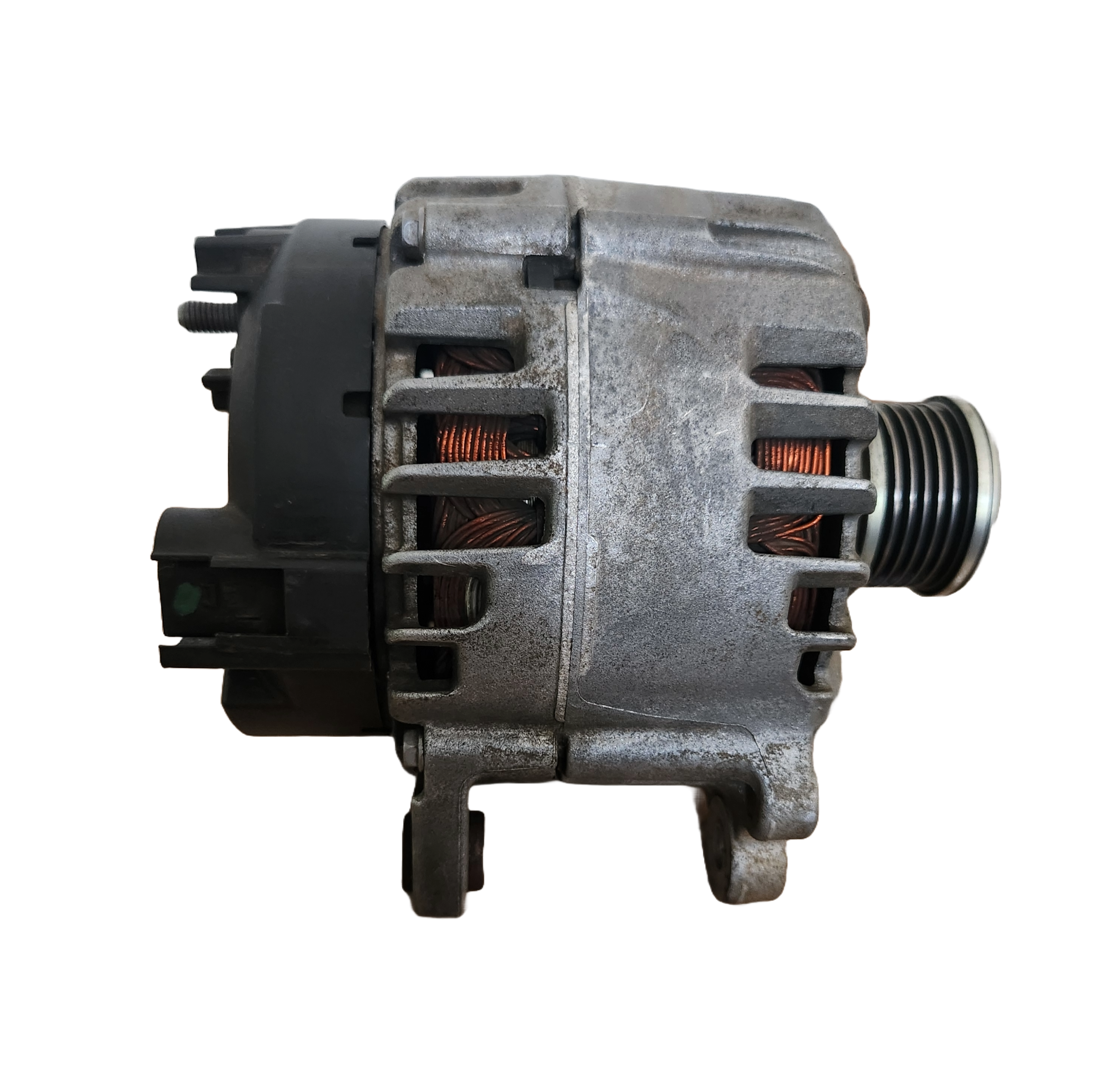

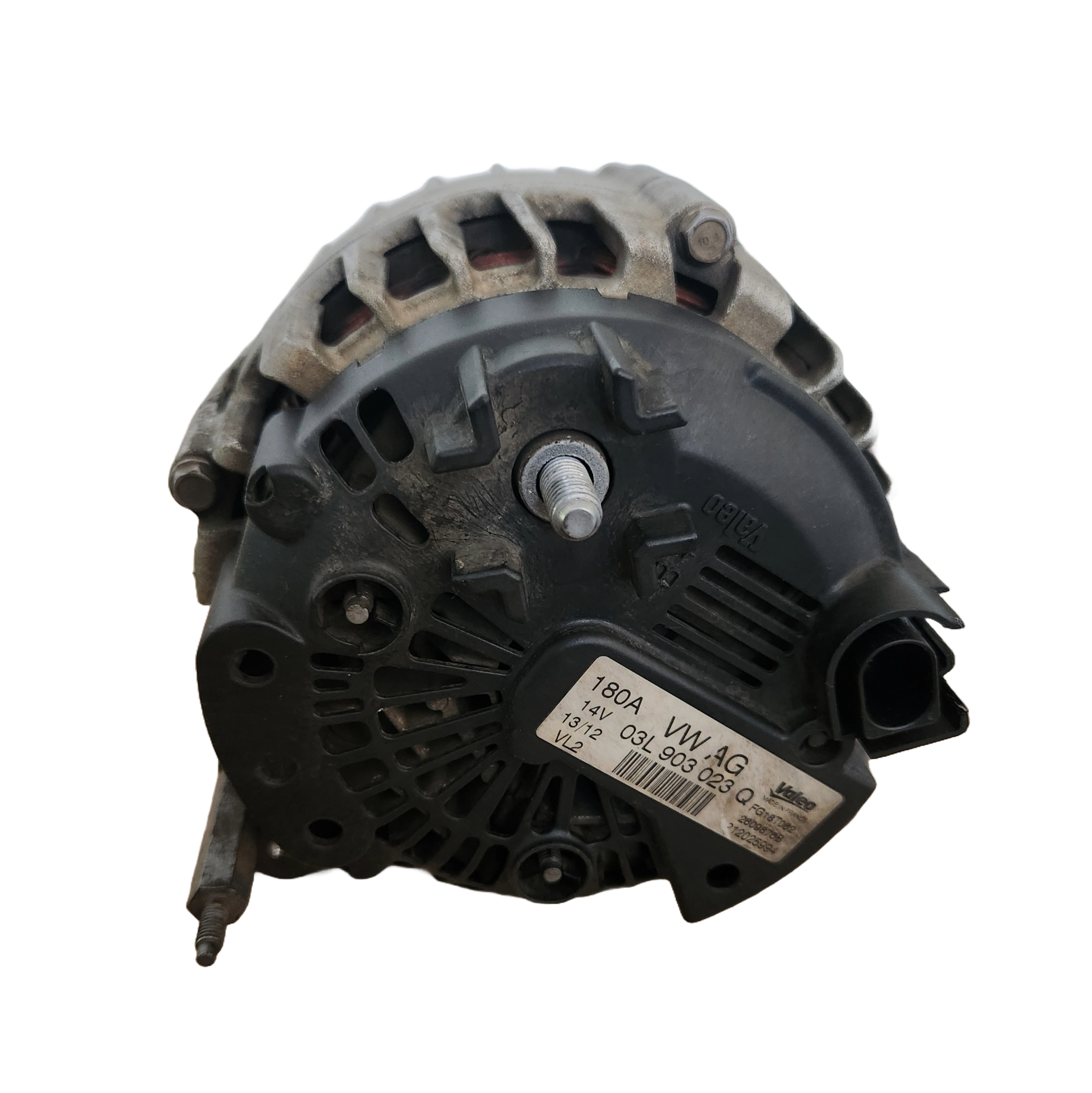

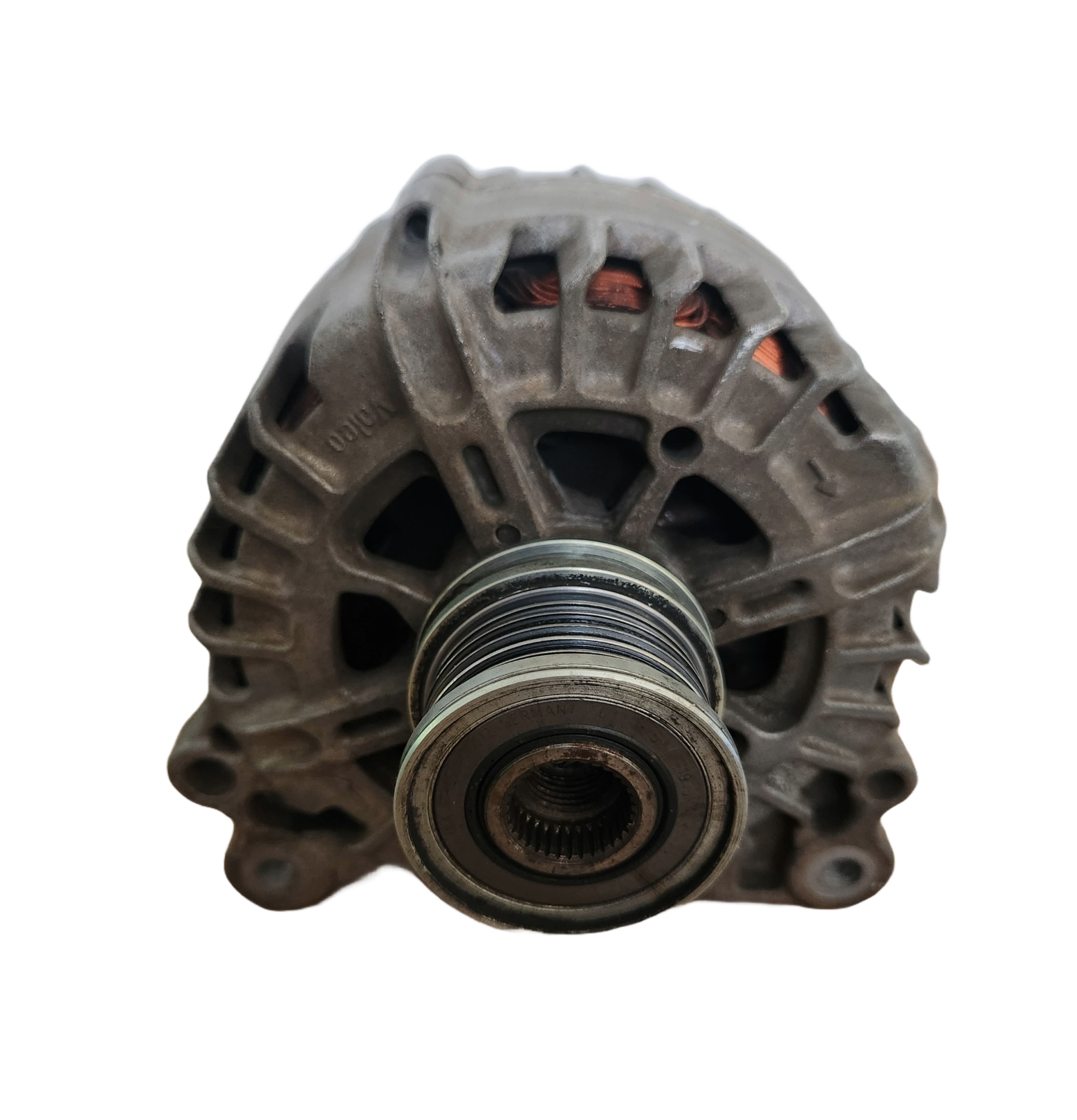

180amp USED Alternator 03L903023Q

This used 180-amp alternator is a genuine OEM part designed to fit a variety of Volkswagen (VW) models. While it is a used item, it has been fully tested and remains functional. Expect minor wear typical of a used part, including light scratches and marks.

Key Features:

✔ OEM Quality – Genuine VW part for reliable performance and fitment.
✔ High Output – 180-amp charge current for efficient power delivery.
✔ Durable Construction – Built to last with a sturdy design and long-lasting components.
✔ Clockwise Rotation – Designed to rotate in a clockwise direction for proper engine operation.
✔ Used Part – Fully functional, with minor cosmetic wear from prior use.

Specifications:

• Alternator Charge Current [A]: 180
• Voltage [V]: 14
• Belt Pulley Ø [mm]: 51
• Number of Ribs: 6
• Rotation Direction: Clockwise
• Position / Degree: R 90
• Pulleys: With belt pulley, with freewheel belt pulley
• Connector / Clamp: Without connection for speed sensor
• Fastening Type: Four-point attachment
• Weight [kg]: 7.57

Compatibility:

This alternator is compatible with the following VW models:

• VW Transporter T5 Platform / Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7FD) (04.2003 - 08.2015)
• VW Transporter T5 Van (7HA, 7HH, 7EA, 7EH) (04.2003 - ...)
• VW Transporter T5 Minibus (7HB, 7HJ, 7EB, 7EJ, 7EF, 7EG, 7HF, 7EC) (04.2003 - 08.2015)
• VW Passat B6 Saloon (3C2) (03.2005 - 11.2010)
• VW Passat B6 Variant (3C5) (08.2005 - 10.2011)
• VW Crafter 30-35 Minibus (2E) (04.2006 - 12.2016)
• VW Crafter 30-50 Van (2E) (04.2006 - 12.2016)
• VW Crafter 30-50 Platform/Chassis (2F) (04.2006 - 12.2016)
• VW Passat CC (357) (05.2008 - 01.2012)
• VW Multivan T6 (SGF, SGM, SGN) (04.2015 - ...)
• VW Transporter T6 Minibus (SGB, SGG, SGJ) (04.2015 - ...)
• VW Transporter T6 Van (SGA, SGH) (04.2015 - ...)

Installation Notes:

• Direct Replacement – No modifications required, designed to replace your existing alternator.
• Professional Installation Recommended – Ensure the alternator is properly mounted and connected for optimal function.
• Electrical Testing – Always test the alternator after installation to ensure it’s delivering the correct charge output.
