Aftermarket Volkswagen GOLF 4 1.9 TDI Intermediate Service Kit Parts ASZ ATD
INTERMEDIATEĀ SERVICE KIT
Volkswagen GOLF 4 1.9 TDI ASZ ATD

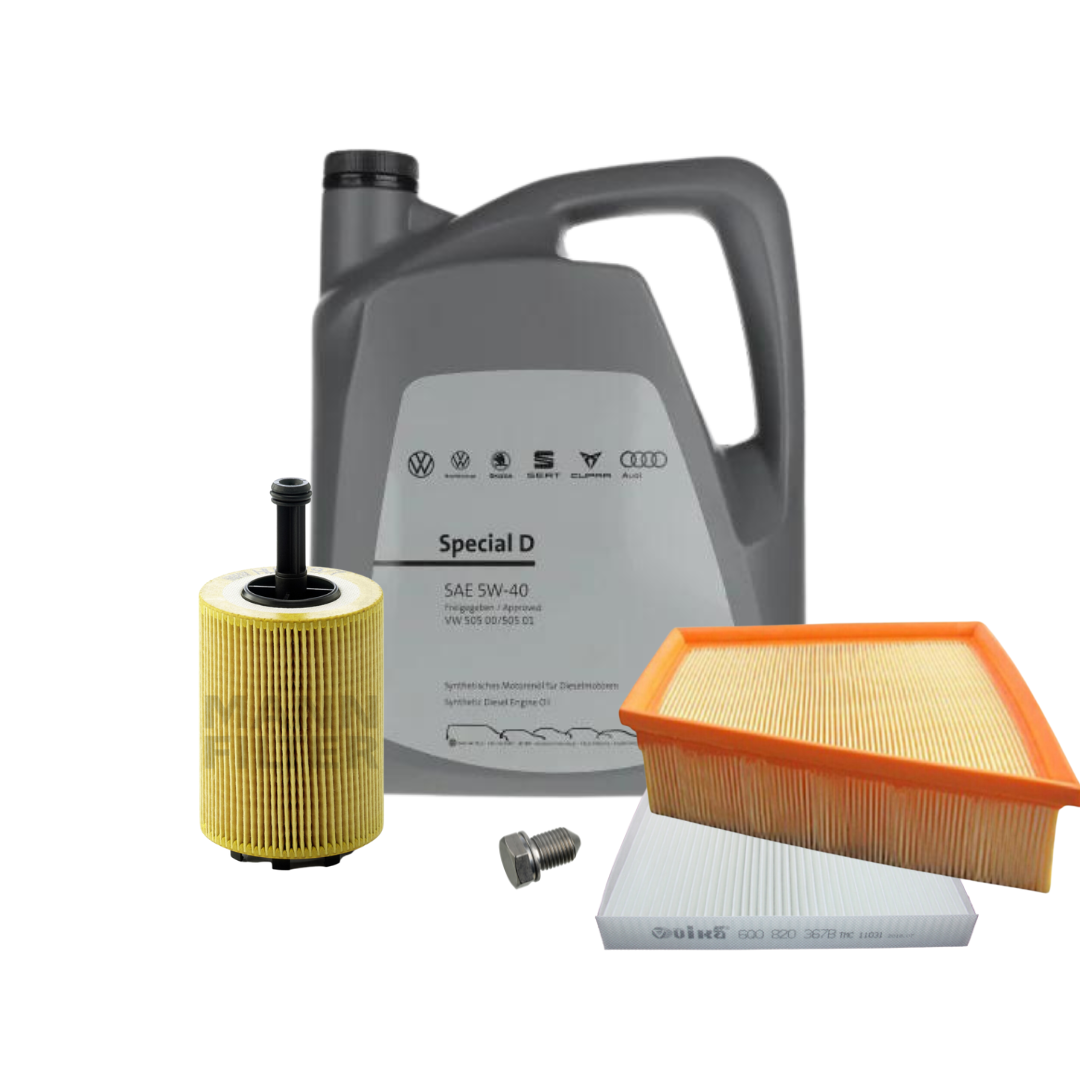

Kit includes:
Sump Plug and washer
Motor Oil
Oil Filter
Air Filter
Cabin Filter
Ā
Ā ASZ/ATDĀ Engine CodeĀ
Other Information:
Engine oil
SAE 5W-30Ā VW 505 01
Engine oil
SAE 5W-40Ā VW 505 01
Engine sump, including filter Ā 4.3 (l)
SHOP LIQUI MOLY 5W40 VW505 01 HERE
LonglifeĀ
Engine oil
SAE 5W-30Ā VW 507 00
Engine oil
SAE 0W-30Ā VW 506 01
Ā Engine sump, including filter Ā 4.3 (l)
SHOP OEM 0W30 LONGLIFE III FE HERE
Cooling system
Coolant (De-ionised water with 40% anti-freeze)
TL-VW 774F (G12+)
Above -25 °C
Coolant (De-ionised water with 50% anti-freeze)
TL-VW 774F (G12+)
Above -35 °C
Coolant (De-ionised water with 60% anti-freeze)
TL-VW 774F (G12+)
Above -40 °C
Coolant (De-ionised water with 40% anti-freeze)
TL-VW 774G (G12++)
Above -25 °C
Coolant (De-ionised water with 50% anti-freeze)
TL-VW 774G (G12++)
Above -35 °C
Coolant (De-ionised water with 60% anti-freeze)
TL-VW 774G (G12++)
Above -40 °C
Cooling system Ā 6.0 (l)
SHOP OEM G12 EVOĀ COOLANT ADDITIVE HERE
SHOP LIQUI MOLY G12++ COOLANT ADDITIVE HERE
SHOP HEPU COOLANT ADDITIVE HERE
SHOP AFTERMARKET DEIONISED WATER
Brake system : General data, ( - 2005)
Brake fluidĀ DOT 4
Brake system Ā 1.15 (l)
Brake system : General data, (2006 - )
Brake fluidĀ VW 501 14
Brake system Ā 1.15 (l)
SHOP OEM DOT 4 VW50114 BRAKE FLUID 250ML HERE
SHOP LIQUI MOLY DOT 4 BRAKE FLUID 500ML HERE
SHOP HELLA PAGID DOT 4 BRAKE FLUID 1L HERE
Automatic transmission, 09A, 5-speed
ATFĀ VW G 052 990 A2
Automatic transmission
Initial filling Ā 7.0 (l)
Gearbox refill (Filled for life) 2.5 (l)
Plug location (1 - Drain plug; 2 - Level plug),Ā
Manual transmission, 02J, 5-speed
Gear oil
SAE 75WĀ VW G 052 726 A2
Manual transmission
Gearbox refill Ā 2.0 (l)
Manual transmission, (02M, 02Y), 6-speed, Front-wheel drive
Gear oilĀ VW G 052 171 A2
Manual transmission
Gearbox refill Ā 2.3 (l)
Manual transmission, (02M, 02Y), 6-speed, 4WD
Gear oilĀ VW G 052 171 A2
Manual transmission
Gearbox refill Ā 2.6 (l)
Rear differential, 4WD
Gear oil
SAE 75W-90Ā VW G 052 145
Differential Ā 1.0 (l)
Ā
Haldex coupling
Hydraulic fluid
VW G 052 175 A1
Haldex coupling
Haldex coupling refill after overhaul Ā 0.42 (l)
Haldex coupling refill Ā 0.25 (l)
Steering
Hydraulic fluid
VW G 002 000
