Aftermarket Minor Service Kit Parts Volkswagen Tiguan MK2 2.0 TSI CHH CZP DKZ DNN

Keep your Volkswagen Tiguan MK2 2.0 TSI running smoothly with this Minor Service Kit. Specifically designed for models equipped with engine codes CHH, CZP, DKZ, and DNN, this kit is ideal for routine maintenance intervals. It includes the essential components needed for a standard oil change—ensuring your engine remains properly lubricated and protected from contaminants.

Whether you're handling your own servicing or preparing for a professional oil change, this kit simplifies maintenance with high-quality parts. The motor oil can also be excluded or parts purchased individually upon request.

Volkswagen Tiguan MK2 – 2.0 TSI (CHH / CZP / DKZ / DNN)

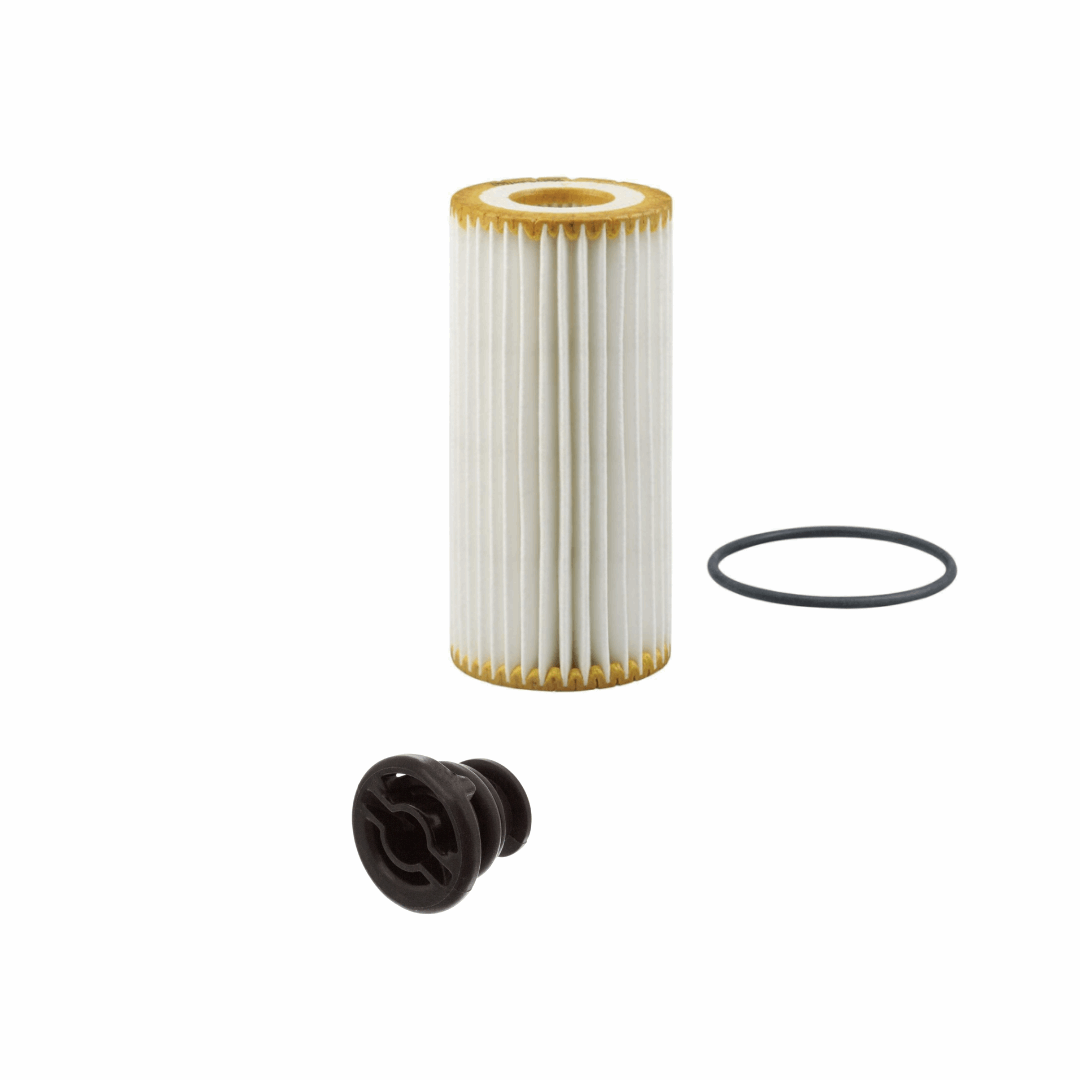

Kit includes:

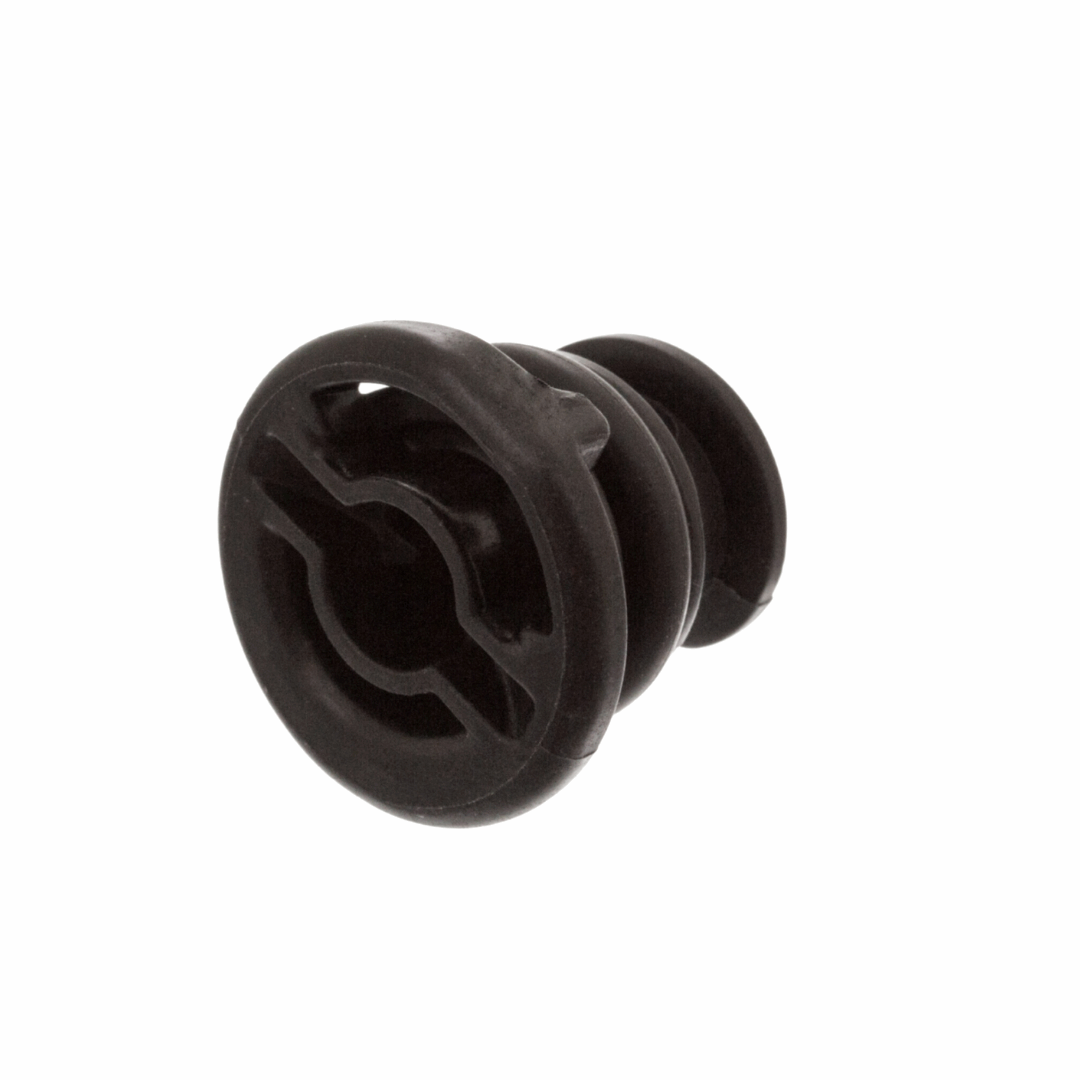

• Sump Plug and Washer – Prevents oil leaks with a secure seal

• Motor Oil – High-quality synthetic oil for engine protection

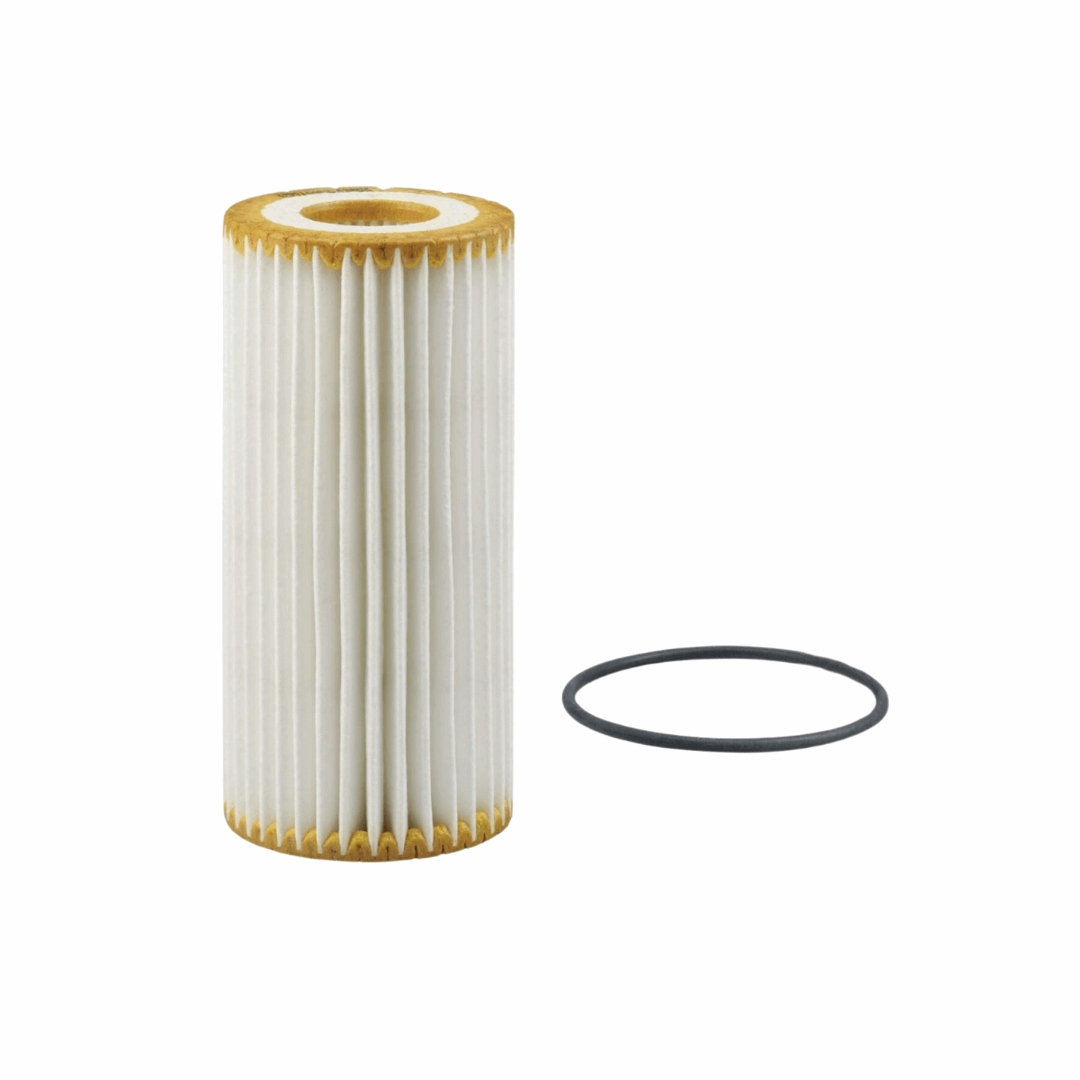

• Oil Filter – Effectively traps debris for clean oil circulation

Engine Code: CHH (2017- **)

Engine Code: CZP (2016-2019)

Engine Code: DKZ (2019- **)

Engine Code: DNN (2021- **)
Available without motor oil or as individual parts upon request

OTHER INFO:

Time/Distance Dependent Service
Engine Oil Specs:

• SAE 5W-30 – VW 504 00 / 507 00

• SAE 0W-30 – VW 504 00 / 507 00

Oil Capacity (with filter): ~5.7 L
Oil Drain Plug Torque: 30 Nm

Recommended Oils:

• LIQUI MOLY Top Tec 4200 5W30

• OEM VW 504 00 / 507 00 Approved Oils

Cooling System
Coolant Specs (TL-VW 774J – G13):

• 40% Mix: Protects to –25 °C

• 50% Mix: Protects to –35 °C

• 60% Mix: Protects to –40 °C

• Top-up: TL-VW 774G (G12++)
  Cooling System Capacity: ~6.4 L

Coolant Options:

• G13 COOLANT

• G12++ COOLANT

• OEM G12 EVO

• OEM / Aftermarket DEIONISED WATER

Brake System
Brake Fluid Spec: VW 501 14 / DOT 4
System Capacity: ~1.0 L

Recommended Fluids:

• HELLA PAGID BRAKE FLUID DOT 4

• OEM BRAKE FLUID DOT 4

• LIQUI MOLY BRAKE FLUID DOT 4

Manual Transmission (6-speed)
Gear Oil: SAE 75W-90 – VW G 052 527 A2
Volume: ~2.3 L
