Aftermarket Coolant Flange Housing 06H121132H for Audi A4 A5 A6 Q5 VW Amarok

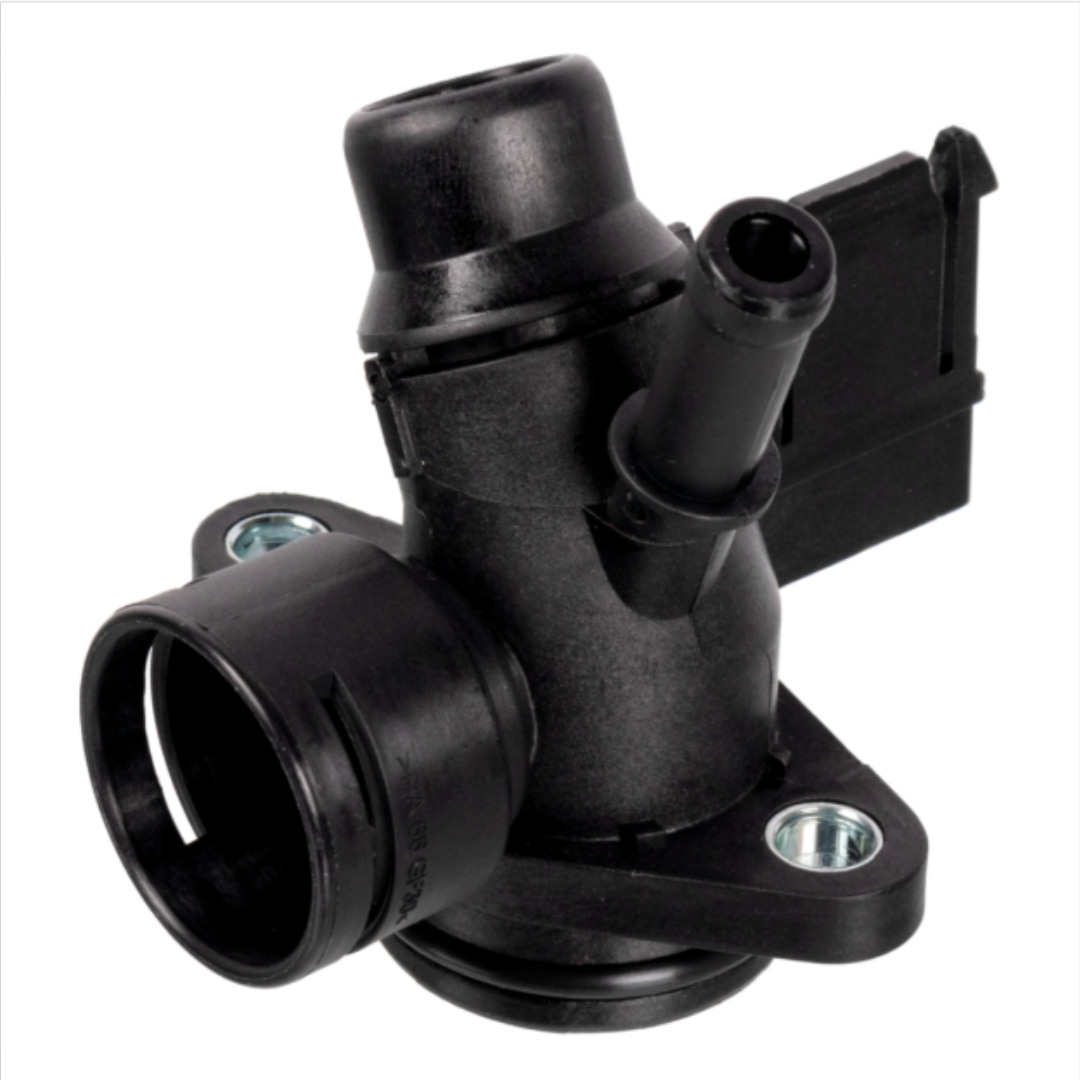

Aftermarket engine coolant flange housing  – 06H121132H for Audi & VW 1.8 / 2.0 TFSI Engines

Description:
This aftermarket engine coolant flange housing (part no. 06H 121 132 H) is a direct replacement for OEM units found in various Audi and Volkswagen models equipped with 1.8 TFSI and 2.0 TFSI/TSI engines. Engineered to precise tolerances using durable materials, it ensures efficient coolant routing and prevents leaks that can lead to engine overheating or failure. Ideal for replacing cracked or leaking housings on turbocharged FSI engines.

Key Features:

• High-quality aftermarket replacement of OE part number 06H121132H

• Compatible with a wide range of Audi and VW 1.8 TFSI & 2.0 TFSI engines

• Designed for secure fitment with factory sensors and hoses

• Reinforced construction to withstand heat and pressure fluctuations

• Precision molded for exact gasket sealing

• Easy installation with existing mounting points

Part Number: 06H 121 132 H

Compatibility:

AUDI

A4 / S4 B8 (8K2) 2008–2017

• 1.8 TFSI (CABA, CDHA) – 88 kW / 120 HP

• 1.8 TFSI (CABB, CDHB) – 118 kW / 160 HP

• 2.0 TFSI (CAEA, CDNB, CFKA) – 132 kW / 180 HP

• 2.0 TFSI (CAEB, CDNC) – 155 kW / 211 HP

• 2.0 TFSI (CNCD) – 165 kW / 224 HP

• 2.0 TFSI quattro (CDNC, CPMA) – 155 kW / 211 HP

• 2.0 TFSI quattro (CNCD) – 165 kW / 224 HP

A4 Avant B8 (8K5) – Same fitment as above

A4 Allroad B8 (8KH)

• 2.0 TFSI quattro (CDNC, CPMA) – 155 kW / 211 HP

A5 / S5 (8T3) 2008–2017

• 1.8 TFSI (CABD, CJEB) – 125 kW / 170 HP

• 2.0 TFSI (CDNC, CNCD, CNCE) – 155–169 kW

• 2.0 TFSI quattro (CAEB, CDNC, CPMA, CNCD, CNCE) – 155–169 kW

A5 Convertible (8F7) & Sportback (8TA) – Same as above

A6 C7 (4G2, 4GC) 2011–2019

• 2.0 TFSI (CDNB) – 132 kW / 180 HP

Q5 (8RB) 2009–2025

• 2.0 TFSI quattro (CAEB, CDNC) – 155 kW

• 2.0 TFSI quattro (CDNB, CNCB) – 132 kW

VOLKSWAGEN

Amarok (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) 2010–2022

• 2.0 TSI (CFPA) – 118 kW / 160 HP

Installation Notes:

• Always install with a new gasket or sealant as per OEM spec

• Ensure proper torque of bolts to prevent leaks

• Compatible with original hoses and temperature sensors

• Bleed the coolant system after installation to remove air pockets
