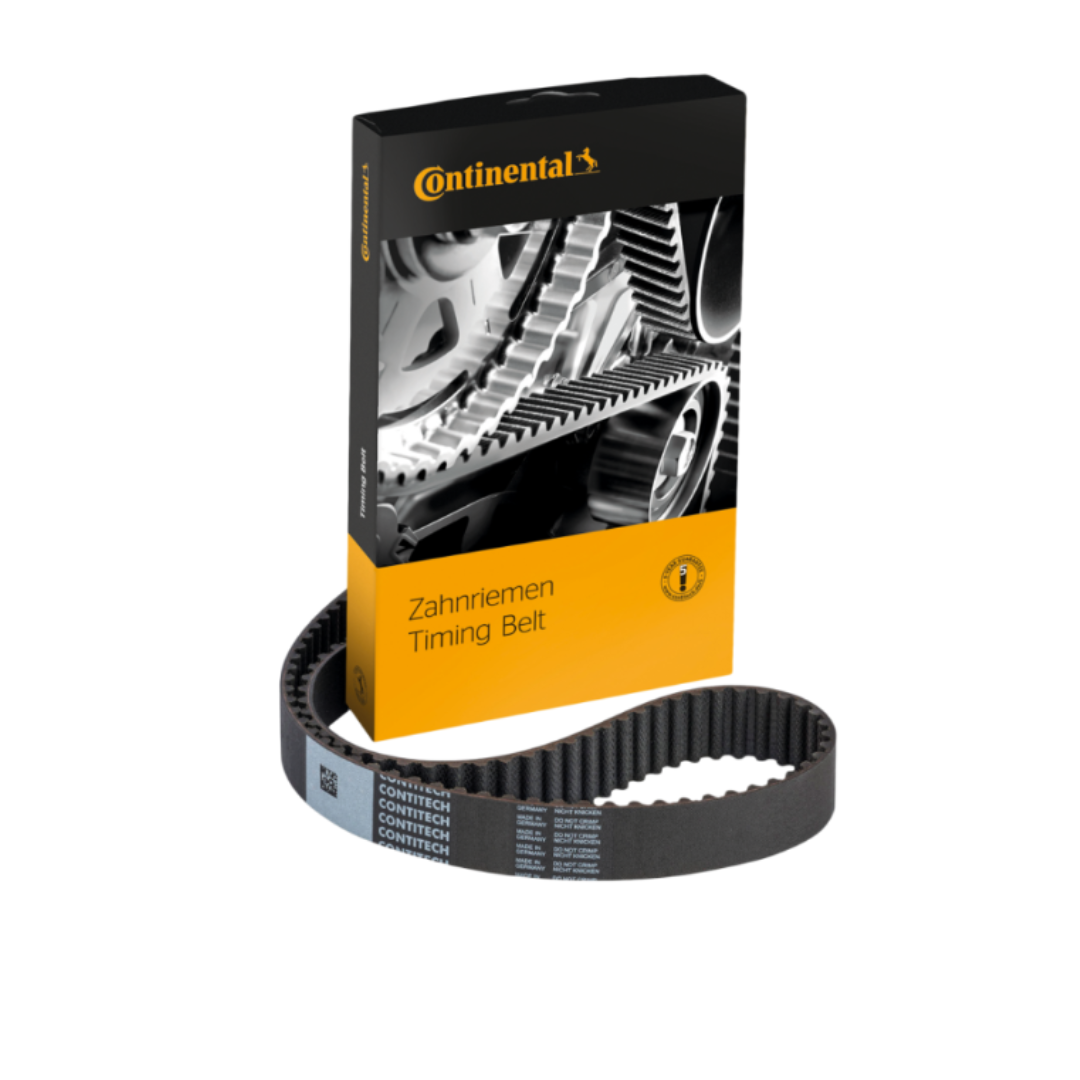

Aftermarket Timing Belt CT1167 – Fits Audi A1, A3, VW Golf, Polo, Caddy, T-Cross, Up! – 1.0 TSI / 1.2 TSI / 1.5 TSI Engines
Aftermarket Timing Belt – Fits Audi A1, A3, VW Golf, Polo, Caddy, T-Cross, Up! – 1.0 TSI / 1.2 TSI / 1.5 TSI Engines
Product Description:
Ensure precise engine timing and optimal performance with this high-quality Aftermarket Timing Belt. Designed for a wide range of Audi and Volkswagen vehicles equipped with 1.0 TSI, 1.2 TSI, and 1.5 TSI engines, this belt is manufactured with heat-resistant, wear-durable materials to provide long-lasting reliability and efficient power transfer.
Whether you’re replacing a worn timing belt or conducting scheduled maintenance, this belt matches OEM specifications to ensure accurate camshaft-crankshaft synchronization. An essential component for engine health, preventing belt failure is key to avoiding major engine damage.
Key Features:
✅ OEM-Spec Performance – Built to match original belt specs for perfect tension and alignment
✅ High-Durability Material – Heat-resistant rubber and fiber construction resists wear and stretching
✅ Accurate Tooth Pitch – 5 mm pitch with 81 teeth ensures precise engine timing
✅ Wide Compatibility – Covers a variety of small-displacement turbocharged Audi and VW engines
✅ Lightweight Design – Reduces rotational inertia for improved engine efficiency
✅ Budget-Friendly Quality – Reliable aftermarket option at a fraction of dealership cost
OEM PART NO:04E109119F
CONTINTAL PART NO: CT1167
Technical Specifications:
Number of Teeth: 81
Tooth Pitch: 5 mm
Belt Width: 10 mm
Weight: 0.06 kg
Packaging Dimensions: 25.5 cm (L) x 16 cm (W) x 3 cm (H)
Part Compatibility:
AUDI
A1/ S1 (8X1, 8XK) 2011 - 2019
1.0 TFSI (CHZB|DKLD) - 70 kW / 95 HP
A1 / S1 Sportback (8XA, 8XF) 2012 - 2019
1.0 TFSI (CHZB|DKLD) - 70 kW / 95 HP
A1 Sportback (GBA) 2018 - 2025
30 TFSI (DKJA|DKRF|DUSA) - 85 kW / 116 HP
35 TFSI (DADA|DPCA|DXDB) - 110 kW / 150 HP
A3 / S3 (8V1, 8VK) 2012 - 2018
1.0 TFSI (CHZD) - 85 kW / 115 HP
1.2 TFSI (CJZA) - 77 kW / 105 HP
1.2 TFSI (CYVB) - 81 kW / 110 HP
A3 / S3 Saloon (8VS, 8VM) 2013 - 2021
1.0 TFSI (CHZD) - 85 kW / 115 HP
30 TFSI (DKRF) - 85 kW / 115 HP
35 TFSI (DADA|DPCA) - 110 kW / 150 HP
A3 / S3 Sportback (8VA, 8VF) 2013 - 2021
1.0 TFSI (CHZD|DKRF) - 85 kW / 115 HP
1.2 TFSI (CJZA) - 77 kW / 105 HP
30 TFSI (DKRF) - 85 kW / 116 HP
35 TFSI (DADA|DPCA) - 110 kW / 150 HP
Q2 (GAB, GAG) 2016 - 2025
1.0 TFSI (CHZJ) - 85 kW / 115 HP
30 TFSI (DKRF|DUSA) - 85 kW / 116 HP
VOLKSWAGEN
CADDY IV Box Body/MPV (SAA, SAH) 2015 - 2022
1.6 SRE (CWVA) - 81 kW / 110 HP
CADDY IV MPV (SAB, SAJ) 2015 - 2022
1.0 TSI (CHZG|DKRE) - 75 kW / 102 HP
CADDY V Box Body/MPV (SBA, SBH) 2020 - 2025
1.6 SRE (DWYA) - 81 kW / 110 HP
CADDY V MPV (SBB, SBJ) 2020 - 2025
1.6 SRE (DWYA) - 81 kW / 110 HP
GOLF SPORTSVAN VII (AM1, AN1) 2014 - 2025
1.2 TSI (CYVB) - 81 kW / 110 HP
GOLF VII (5G1, BQ1, BE1 , BE2) 2012 - 2025
1.0 TSI (CHZC) - 81 kW / 110 HP
1.2 TSI (CJZA) - 77 kW / 105 HP
1.2 TSI (CYVB) - 81 kW / 110 HP
GOLF VII Van (5G1) 2012 - 2025
1.2 TSi BlueMotion (CJZA) - 77 kW / 105 HP
POLO III (6R1, 6C1) 2009 - 2018
1.0 TSI (CHZB) - 70 kW / 95 HP
1.0 TSI (CHZC) - 81 kW / 110 HP
1.2 TSI (CJZD) - 81 kW / 110 HP
1.2 TSI 16V (CJZC) - 66 kW / 90 HP
POLO IV (AW1, BZ1, AE1) 2018 - 2025
1.0 TSI (CHZJ|DKJA|DKRF|DUSA|DXUA) - 85 kW / 116 HP
1.0 TSI (CHZL|DKLA|DLAC|DUSB|DXTA) - 70 kW / 95 HP
T-CROSS (C11, D31) 2019 - 2025
1.0 TSi (CHZL|DKLA|DLAC|DUSB|DXTA) - 70 kW / 95 HP
1.0 TSi (DKJA|DKRF|DUSA|DXUA) - 85 kW / 116 HP
1.5 TSI (DADA|DPCA|DXDB) - 110 kW / 150 HP
UP! (121, 122, BL1, BL2, BL3, 123) 2015 - 2020
1.0 (CHYB) - 55 kW / 75 HP
Installation Notes:
Direct-fit replacement – no modification required
Ensure proper alignment with timing marks during installation
Tension adjustment must be performed using correct tools
Replace timing tensioner and idler pulley if worn
Recommended as part of scheduled maintenance (typically every 90,000–120,000 km)
