Aftermarket Timing Belt Kit | VW/Audi 1.0, 1.2, 1.4 TFSI TSI Engines

Aftermarket Timing Belt Kit – For Audi & VW TSI/TFSI Engines (Multiple Engine Codes)

Description:
Ensure reliable engine performance and long-term durability with this aftermarket timing belt kit, designed specifically for small-displacement TFSI and TSI engines from Audi and Volkswagen. Ideal for scheduled maintenance or preventive replacement, this kit includes high-quality components for precise valve timing, reduced noise, and extended engine life.

Key Features:

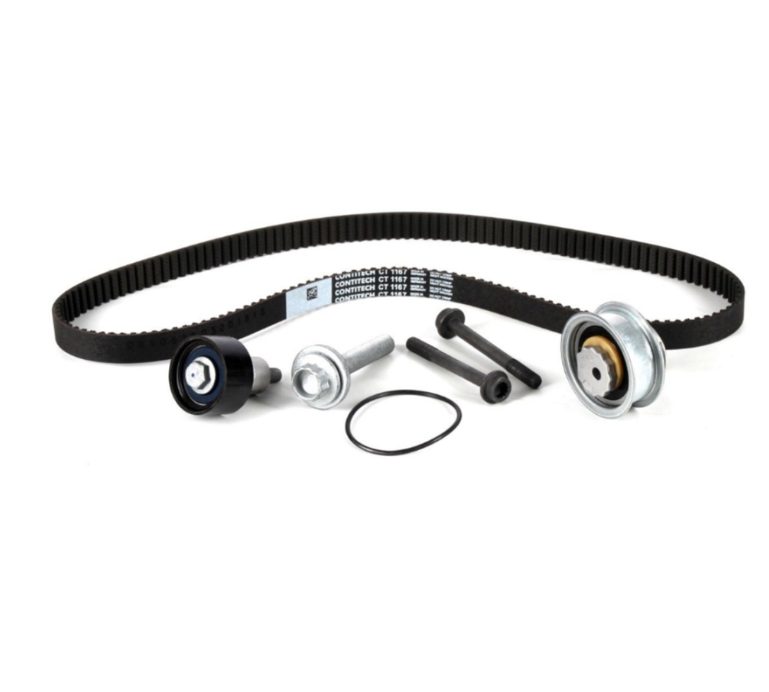

• Complete aftermarket kit with belt, tensioner, and idlers

• Designed for popular 1.0, 1.2, and 1.4 TFSI/TSI engines

• Maintains OEM timing specifications

• Reduces risk of premature engine wear or timing failure

• Compatible with models from 2010 to 2025

Part Number:
Varies by supplier – aftermarket equivalent for OEM timing kits matching TSI/TFSI applications (e.g., 04E109119F, 04C109119H)

Compatibility:

This timing belt kit fits a wide range of vehicles with the following engine codes:
CHZB, CHZD, CHZC, CHZJ, CHZL, CHYB, CJZA, CJZD, CJZC, CYVB, CZCA, CZDD, CZDA, CZEA, CZDB, CZTA, CXSA, CXSB, CMBA, CPTA, DJKA, DJVA, DKJA, DKLA, DKLD, DKRF, DLAC, DUSB, DUSA, DXUA, DXTA, DWYA

AUDI:

• A1/S1 & Sportback (8X1, 8XA, 8XF) 2011–2019 — 1.0 & 1.4 TFSI

• A1 Sportback (GB1) 2018–2025 — 30 TFSI

• A3/S3 & variants (8V, 8VS, 8VA, 8VF) 2012–2021 — 1.0 / 1.2 / 1.4 TFSI

• A4/S4 B9 (8W2, 8WC) 2015–2025 — 1.4 TFSI

• Q2 (GAB, GAG) 2016–2025 — 1.0 & 1.4 TFSI

• Q3 (8U) 2012–2019 — 1.4 TFSI

VOLKSWAGEN:

• Beetle (5C1, 5C2) 2011–2025 — 1.4 TSI

• Caddy IV/V 2015–2025 — 1.0 TSI & 1.6 SRE

• Golf VI/VII & Golf Sportvan 2012–2025 — 1.0 / 1.2 / 1.4 TSI

• Jetta VI (162, 163, AV3, AV2) 2010–2025 — 1.4 TSI

• Passat B8 (3G2, CB2) 2015–2019 — 1.4 TSI

• Polo III/IV (6R, AW1) 2009–2025 — 1.0 & 1.2 TSI

• T-Cross (C11, D31) 2019–2025 — 1.0 TSI

• Tiguan / Allspace (AD1, AX1, BW2, BJ2) 2016–2025 — 1.4 TSI

• UP! (121, 122, etc.) 2015–2020 — 1.0

Installation Notes:

• Always replace the water pump and tensioners with the timing belt for maximum reliability

• Professional installation recommended for proper alignment and torque specs

• Replace every 90,000–120,000 km depending on engine code and service history

AUDI

A1/S1 (8X1, 8XK) 2011-2019

1.0 TFSI (CHZB|DKLD) - 70 kW / 95 HP

1.4 TFSI (CZCA|CZDD) - 92 kW / 125 HP

A1/S1 Sportback (8XA, 8XF) 2012-2019

1.0 TFSI (CHZB|DKLD) - 70 kW / 95 HP

1.4 TFSI (CZCA|CZDD) - 92 kW / 125 HP

A1 Sportback (GB1) 2018 -2025

30 TFSI (DKJA|DKRF|DUSA) - 85 kW / 116 HP

A3/S3 (8V1, 8VK) 2012-2018

1.0 TFSI (CHZD) - 85 kW / 115 HP

1.2 TFSI (CJZA) - 77 kW / 105 HP

1.2 TFSI (CYVB) - 81 kW / 110 HP

1.4 TFSI (CMBA|CXSA) - 90 kW / 122 HP

1.4 TSI (CZEA) - 110 kW / 150 HP

A3/S3 Convertible (8V7,8VE) 2014-2021

1.4 TFSI (CXSB|CZCA) - 92 kW / 125 HP

A3/S3 Saloon (8VS,8VM) 2013-2021

1.0 TFSI (CHZD) - 85 kW / 115 HP

1.4 TFSI (CXSA) - 90 kW / 122 HP

1.4 TFSI (CXSB|CZCA) - 92 kW / 125 HP

1.4 TSI (CZEA) - 110 kW / 150 HP

30 TFSI (DKRF) - 85 kW / 115 HP

A3/S3 Sportback (8VA,8VF) 2013 -2021

1.0 TFSI (CHZD|DKRF) - 85 kW / 115 HP

1.2 TFSI (CJZA) - 77 kW / 105 HP

1.4 TFSI (CMBA|CXSA) - 90 kW / 122 HP

1.4 TSI (CZEA) - 110 kW / 150 HP

30 TFSI (DKRF) - 85 kW / 116 HP

A4/S4 B9 (8W2, 8WC) 2015 -2025

1.4 TFSI (CVNA) - 110 kW / 150 HP

Q2 (GAB, GAG) 2016 - 2025

1.0 TFSI (CHZJ) - 85 kW / 115 HP

1.4 TFSI (CZEA) - 110 kW / 150 HP

30 TFSI (DKRF|DUSA) - 85 kW / 116 HP

35 TFSI (DJKA) - 110 kW / 150 HP

Q3 (8UB, 8CADDY VUG) 2012 - 2019

1.4 TFSI (CHPB|CZDA|CZEA) - 110 kW / 150 HP

VOLKSWAGEN

BEETLE (5C1, 5C2) 2011 - 2025

1.4 TSI (CZDA) - 110 kW / 150 HP

CADDY V Box Body/MPV (SAA, SAH) 2015 - 2022

1.6 SRE (CWVA) - 81 kW / 110 HP

CADDY IV MPV (SAB, SAJ) 2015 - 2022

1.0 TSI (CHZG|DKRE) - 75 kW / 102 HP

CADDY V Box Body/MPV (SBA, SBH) 2020N- 2025

1.6 SRE (DWYA) - 81 kW / 110 HP

CADDY V MPV ( SBB, SBJ) 2020 - 2025

1.6 SRE (DWYA) - 81 kW / 110 HP

GOLF SPORTVAN VII (AM1, AN1) 2014 - 2025

1.2 TSI (CYVB) - 81 kW / 110 HP

1.4 TSI (CZCA) - 92 kW / 125 HP

GOLF VI Cabriolet (517) 2012 - 2017

1.4 TSI (CHPB|CZDA) - 110 kW / 150 HP

1.4 TSI (CXSB|CZCA) - 92 kW / 125 HP

GOLF VII (5G1, BQ1, BE1, BE2) 2012 - 2025

1.0 TSI (CHZC) - 81 kW / 110 HP

1.2 TSI (CJZA) - 77 kW / 105 HP

1.2 TSI (CYVB) - 81 kW / 110 HP

1.4 TSI (CHPA|CPTA) - 103 kW / 140 HP

1.4 TSI (CMBA|CXSA) - 90 kW / 122 HP

1.4 TSI (CZCA) - 92 kW / 125 HP

1.4 TSI (CZDA|CZEA) - 110 kW / 150 HP

GOLF VII VAN (5G1) 2012 - 2025

1.2 TSi BlueMotion (CJZA) - 77 kW / 105 HP

1.4 TSi BlueMotion (CXSA) - 90 kW / 122 HP

JETTA VI (162, 163, AV3 , AV2) 2010 -2025

1.4 TSI (CZCA) - 92 kW / 125 HP

1.4 TSI (CZDA|CZTA) - 110 kW / 150 HP

PASSAT B8 (3G2, CB2) 2015-2019

1.4 TSI (CZDA|CZEA) - 110 kW / 150 HP

POLO III (6R1, 6C1) 2009 - 2018

1.0 TSI (CHZB) - 70 kW / 95 HP

1.0 TSI (CHZC) - 81 kW / 110 HP

1.2 TSI (CJZD) - 81 kW / 110 HP

1.2 TSI 16V (CJZC) - 66 kW / 90 HP

POLO IV (AW1, BZ1 ,AE1) 2018 - 2025

1.0 TSI (CHZJ|DKJA|DKRF|DUSA|DXUA) - 85 kW / 116 HP

1.0 TSI (CHZL|DKLA|DLAC|DUSB|DXTA) - 70 kW / 95 HP

T-CROSS (C11, D31) 2019 - 2025

1.0 TSi (CHZL|DKLA|DLAC|DUSB|DXTA) - 70 kW / 95 HP

1.0 TSi (DKJA|DKRF|DUSA|DXUA) - 85 kW / 116 HP

TIGUAN (AD1, AX1) 2016 - 2025

1.4 TSI (CZCA|CZDB) - 92 kW / 125 HP

1.4 TSI (CZDA|CZEA|DJVA) - 110 kW / 150 HP

TIGUAN ALLSPACE (BW2, BJ2) 2017-2025

1.4 TSI (CZDA|CZEA) - 110 kW / 150 HP

UP! (121, 122, BL1, BL2, BL3, 123) 2015 -2020

1.0 (CHYB) - 55 kW / 75 HP
